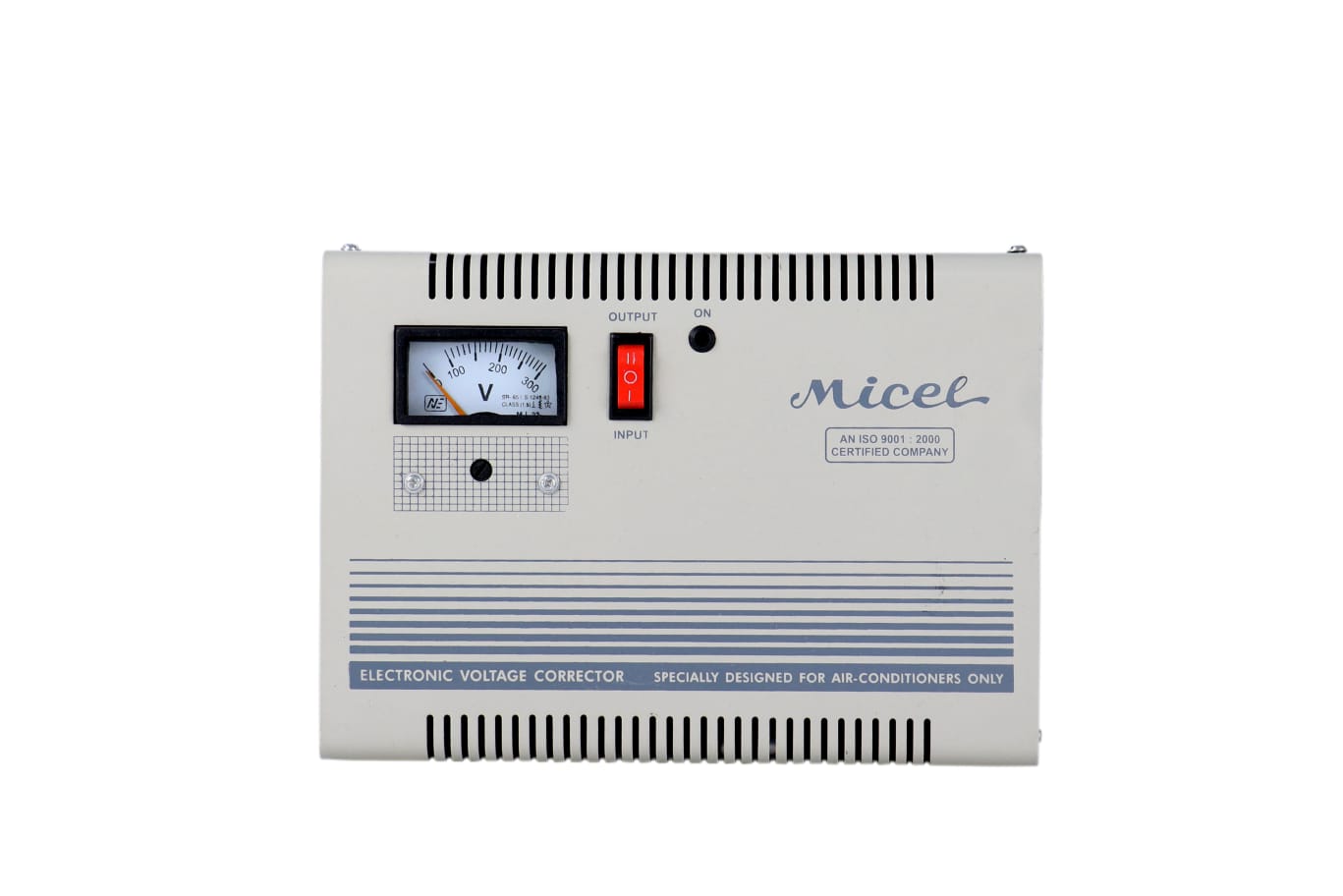

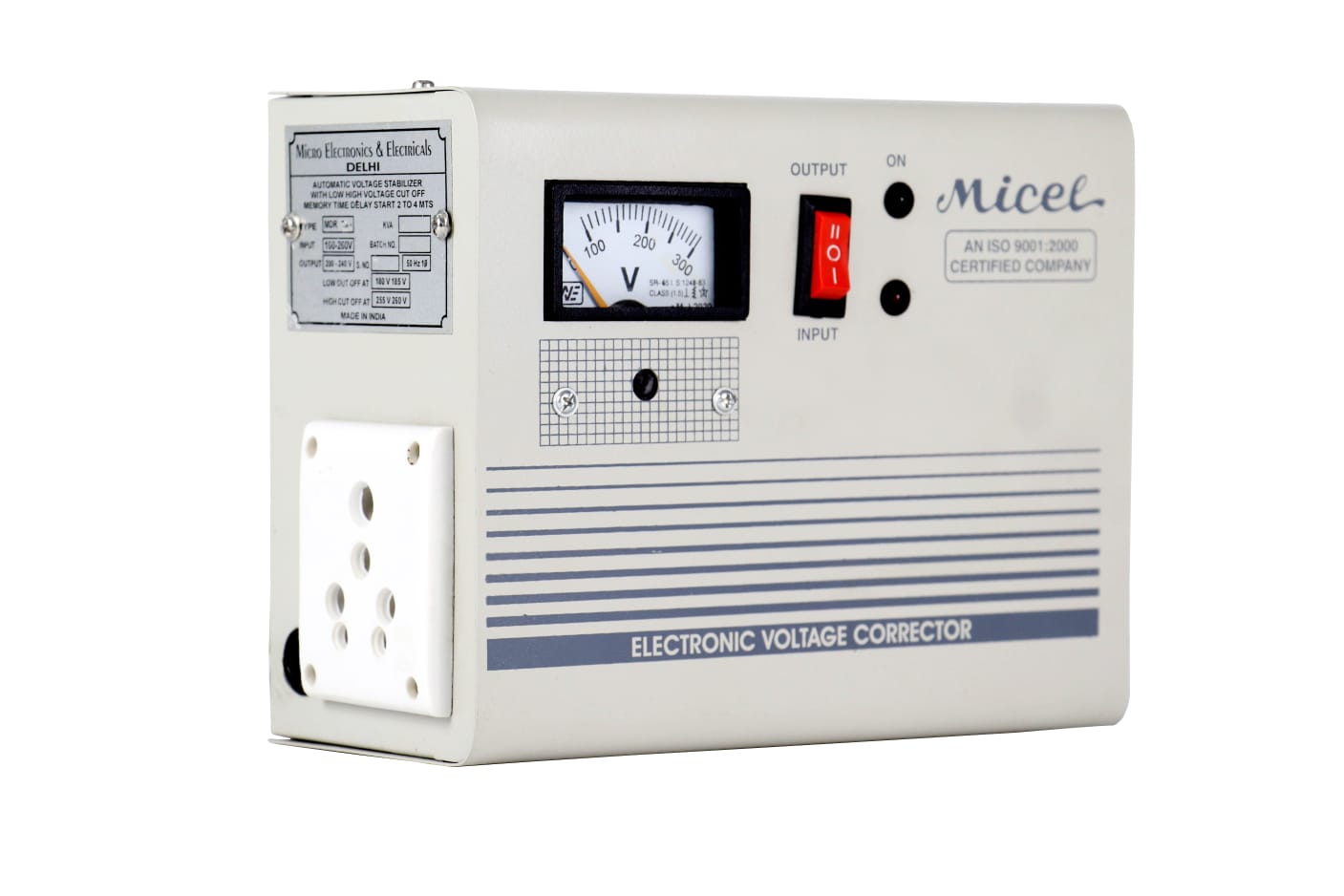

Automatic Stabilizer
Product Description
We offer precisely engineered voltage stabilizers which are used for air conditioners.
• Rating: 3KVA, 4KVA, 5KVA
SALIENT FEATURES:
- Digital IC Controlled Circuit
- German technology based low loss toroidal transformer to reduce no-load losses and make it the most economical stabilizer in its class.
- Its interturn insulation can withstand five times the normal voltage and frequency
- High & Low Voltage cut-off for Compressor protection
- Easy to Install, operate, maintain & service
- Intelligent time delay system between shut down & restarts ensures safety to compressor
- Elegant, sleek, attractive & compact design to match any decor
- Tested to IS 8448 : 1994
- High / Low Cut-Off • Time Delay Relay (TDR) Circuit
- MCB
TECHNICAL SPECIFICATIONS:
| Time Delay | No Output Voltage on DPM |
| Mains Frequency | 50Hz +/-5% |
| Cut-Off Voltage (Output) | High-252+/-2V;Low-192+/-2V |
| 5 KVA to 7.5 KVA | 120V/240V/360V |
| 10 KVA to 50 KVA | 240V/360V |
| Output Termination | Terminal Block of 30 Amp. |
| Indications-Output | 3 Digit 7 Segment LED Display |
| Working Voltage | Red Blinking LED |
| Cut-Off |
Input:145-290 V 120-270 V Output:195-245V 195-245 V |
| Input Cable | 2 Metre (3 Core) |
| Time Delay | 3 minutes between shut down & Subsequent Starts |
| Dimensions (mm) | L x W x H (112 x 315 x 258) |
| Accessories | Two Plugs with screws & Clamp Plate for wall mounting |
| Models | 3 KVA/ 4KVA / 5KVA |
